    Panel Mount Rugged Metal Numeric Keypad With 12 Short Travel Keys

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : MKP92-12F
    Certification : CE,FCC
    Price : US$
    Delivery Time : 20days
    Payment Terms : T/T,Paypal
    Supply Ability : 3000pcs/month
    • Product Details
    • Company Profile

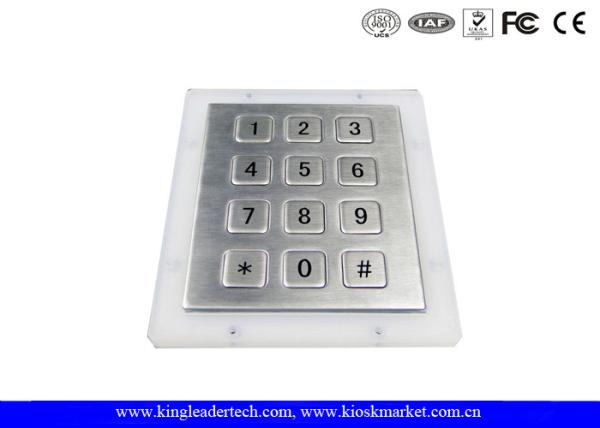

    Panel Mount Rugged Metal Numeric Keypad With 12 Short Travel Keys

    Rugged Metal Numeric Keypad With 12 Short-Travel Keys Panel Mount


    PN:MKP92-12F


    Key Features:


    1)12 flush keys, crispy tactile feedback, all the keys are in the same size
    2)Keys are in 3X4 matrix
    3)Panel mount from the rear side
    4)Exposed parts made of stainless steel, high resistance against destruction, rust etc
    Silicone keypad membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket, no additional gasket will be needed when installed, therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel), this enhancement makes it an ideal choice for outdoor application.Layout customizable according to customers request
    5)Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation, outdoor weight station etc.

    Technical Specification

    Material

    Front panel & Keys

    304 stainless steel

    Number of Keys

    12

    Matrix

    3 x 4

    Function

    Non backlight

    Electrical Data

    Interface

    USB or PS/2 or RS232(With electronic controller board)

    7PIN connector (Without electronic controller board)

    Certification

    CE,FCC

    Environmental Characteristics

    Operating temperature

    -20º C to + 60º C

    Key travel

    0.45mm

    Lifetime (cycles)

    Min 5, 000, 000 actuations

    Sealing protection

    IP65/NEMA4X from the front

    Layout

    Customizable available

    Dimension

    92.00 x 76.50 mm (W x D) (front panel)

    Application

    ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.
